Description

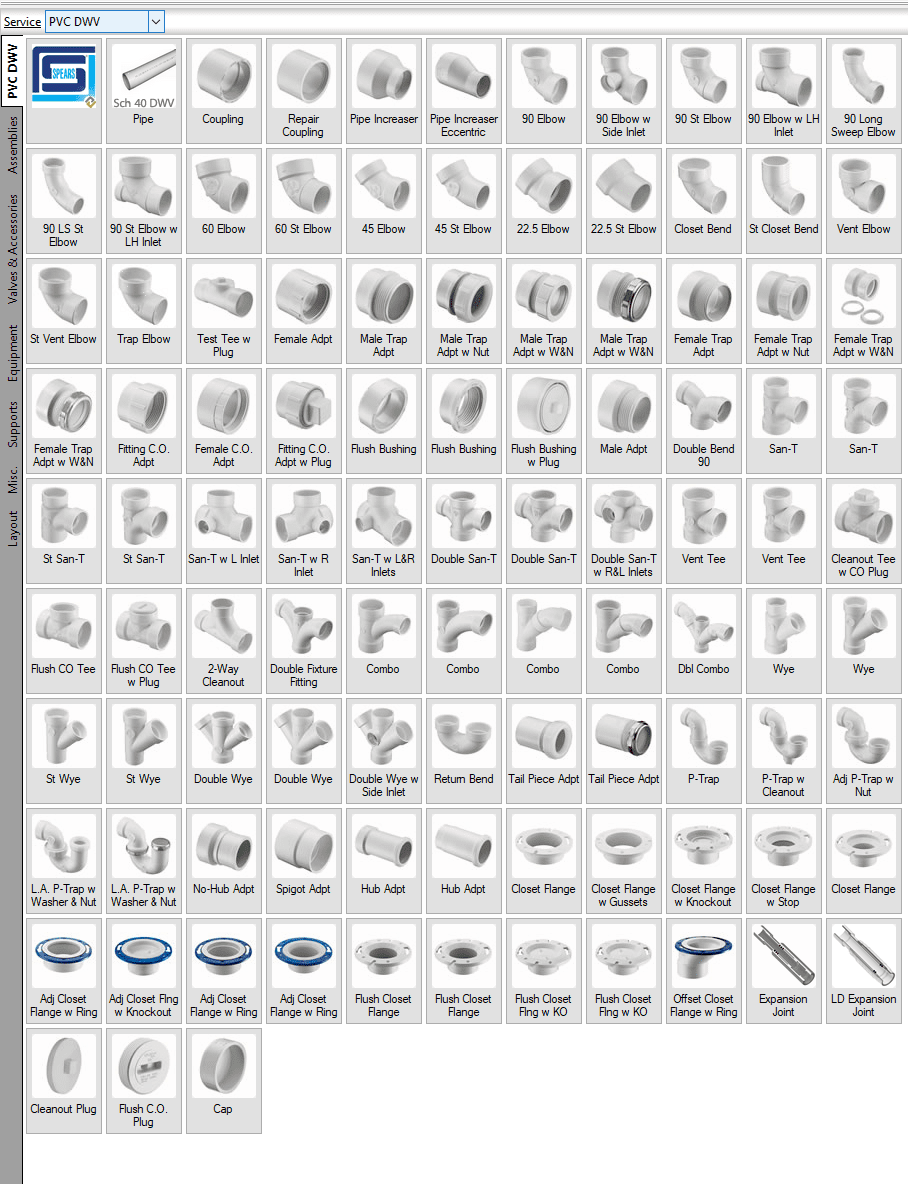

(100 items + pipe)

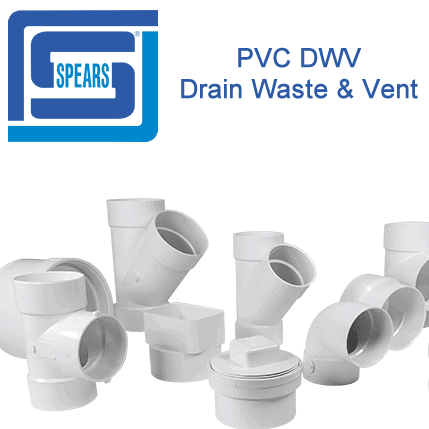

Spears® PVC Schedule 40 solid wall pipe and PVC DWV fittings intended for use in sanitary drain, waste and vent and non-pressure applications where the application operating temperature does not exceed 140° F (63°C).
Product Specification
Spears® PVC schedule 40 pipe and DWV fittings shall be manufactured in the U.S.A. from a Type I, Grade I Poly Vinyl Chloride (PVC) compound having a minimum cell classification of 12454 in accordance with ASTM D1784. Pipe shall be dual marked for pressure and DWV applications and manufactured in strict compliance to ASTM standards D1785 and ASTM D2665. DWV fittings shall conform to ASTM D2665. Fabricated DWV fittings shall conform to ASTM F1866. These products shall be certified by NSF® International in accordance with Standard 14.
Spears® PVC schedule 40 pipe and DWV fittings shall be capable of withstanding a vacuum of twenty-six inches of mercury (Hg) at 73° F (23° C) when subjected to a one hour test with a leak factor of not more than one inch of Hg.
Referenced Standards: ASTM D1784 – Rigid Vinyl Compounds
ASTM D1785 – PVC Schedule 40, 80 & 120 Pipe
ASTM 2321 – Underground Installation of Thermoplastic Pipe (Non-pressure applications)
ASTM D2564 – Solvent Cements for PVC Pipe & Fittings
ASTM D2665 – PVC Drain, Waste & Vent Pipe & Fittings
ASTM F656 – Primers for PVC Pipe & Fittings
ASTM F1668 – Procedures for Buried Plastic Pipe
ASTM F1866 – Fabricated PVC DWV Fittings
NSF International – Standard 14 – DWV
